Location: Main > Fiber Passive Components > Fiber Adaptors Ferrules > FA-FC/FC-2
Name: FC(F)-FC(F) Fiber Adaptor(Circular)
P/N: FA-FC/FC-2
Keywords:FC(F)-FC(F),Circular,N-keyUPC-UPC/APC-APC;MOQ10pcs
Unit Price: S$6.00/pc
Available: In stock
Request: Add to Request List
Introduction:
FC(Female)-FC(Female) Fiber Adaptors, Circular Flange.Type N keyway width defined. FC/UPC-FC/FC/UPC or APC-FC/APC compatible

Sleeve Material:
Zirconia; High precision alignment sleeve for low insertion loss; Single-mode/simplex adapter
Housing:
Metal - brass with plated
Flange Design:
Dia 11.0xT2.0mm; Circular - standard;
Dimensions:

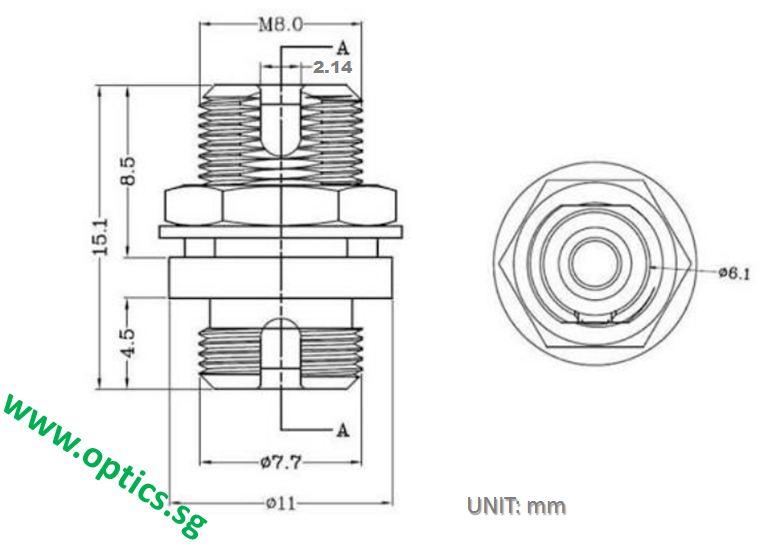

M8.0x0.75mm both ends/total height 15.1mm; Drawing as shown below.
Keyway Width:
2.14mm(Type N) (2.15-2.20mm)
 for standard FC connectors operating for single mode in telecom areas
Insertion Loss:
IL  < 0.1dB
Standards
Complies with IEC (Electrotechnical Commission) 61754-13 and TIA (Telecommunications Industry Association) 604-4-A for intermateability
MOQ:
MOQ10pcs (per order process); Standard packing: 10pcs/bag
