Location: Main > Fiber Passive Components > Fiber Optical Switches > FOSS-RM14-SM-1315-FA

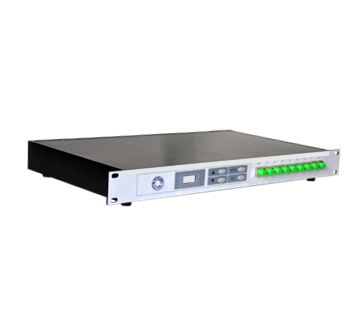

Name: 1x4 1260-1650nm FO Switch System(SMF-28 FC/APC)
P/N: FOSS-RM14-SM-1315-FA
Keywords:1260-1650nm,1x4,SMF-28,RS232,FC/APC,1U rackmounted
Unit Price: S$1,480.00/pc
Available: Call us
Request: Add to Request List
Introduction:
optical switch is a switch that enables signals in optical fibers or integrated optical circuits (IOCs) to be selectively switched from one circuit to another.

19-inch 1-U rack mounted and benchtop versions available

Operation Wavelength:
1260 - 1650nm single mode operation
Measurement Wavelength: 1310nm & 1550nm
Switch Type:
Miniaturized precision step-motor control
Switch Configuration: 1x4
Built-in Fiber Pigtails:
SMF-28e for 1200-2000nm
Connectors/Flanges:
FC/APC flange for both input and output ports
(Front panel as display)
Latching Type:
Latching type
Metal Casing:
Al6061 Hard-aluminum, standard 19" 1-U rackmounted type
Color: grey and black available
Outer Dimension:
L483mm x W200mm x H44mm or L483mm x W330mm x H44mm
Insertion Loss:
 0.8dB typ (max 1.2dB)
Return Loss:
 50dB typ
Cross Talk:
 55dB typ
Polarization Dependent Loss(PDL)
 <0.05dB
Repeatability:
 +/-0.05dB typ
Communication Interface:
 RS232 interface
Switch Speed/Time:
 <10ms (adjacent channel switching)
Life Time:  >10 ^7 times
Display:  LED display
Optical Power Handling
 500mW max
Power Supply:  90 - 260VAC/50-60Hz UK plug
Operation Temperature:  -10 ~+50 degree C
MOQ: MOQ 5sets per order process
