Location: Main > Fiber Passive Components > SM MM Fiber Patchcords > PPC(SM)-3155-R-0202-0.25-0.50

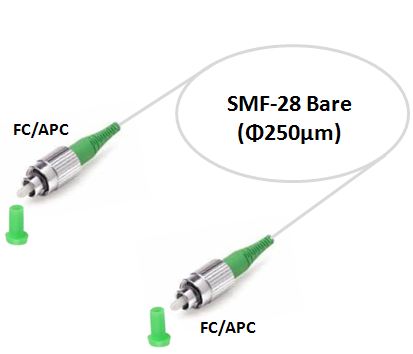

Name: SMF-28 Fiber Patchcord FC/APC-FC/APC(D0.25/L0.50m)
P/N: PPC(SM)-3155-R-0202-0.25-0.50
Keywords:SMF-28,FC/APC-FC/APC,0.25mm bare;L0.50m;MOQ20pcs
Unit Price: S$18.00/pc
Available: Call us
Request: Add to Request List
Introduction:
PPC(SM)-(1)-(2)-(3)-(4)-(5)
(1)Wavelength: "31"-1310nm; "55"-1550nm.
(2)Key Width:  "R"-2.02mm; "N"-2.14mm.
   (for FC Type)
(3)Connector:  "01"-FC/UPC; "02"-FC/APC
               "03"-SC/UPC; "04"-SC/APC
               "05"-LC/UPC; "06"-LC/APC
               "07"-ST/UPC; "08"-ST/APC
               "09"-MU/UPC; "11"-SMA.
(4)Buffer Type
(5)Fiber Length

 Fiber Type:
 SMF-28, Single mode for 1310/1550nm
 Connector type:
 FC/APC-FC/APC terminated (1- 2cm of 900um loose tube used with connectors)
 Fiber Protection:
 Dia 0.25mm bare fiber/without protection tube or jacket
 Fiber Length:
 0.5m (50cm) total; Tolerance +/-2cm typ; Email us for pricing if special length tolerance +/-5mm requested.
 RoHS Compliant:
 Yes
 MOQ: MOQ 20pcs
