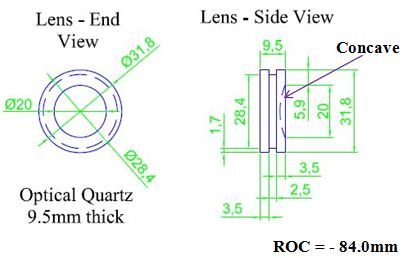

| Name: | DIA31.8xT9.5mm Concave Quartz Window(U Grooved) |
| P/N: | QUZS-C-R-0318-0950-G-C | | Keywords: | Dia31.8xT9.5mm,UV Quartz,U-Grooved,Concave |
| Unit Price: |
S$200.00/pc
|
| Available: |
In stock
|
| Request: |
Add to Request List |
| Introduction: | QUZS UV Grade Quartz Substrate
C 40-20 Scratch and Dig (Double Side Typ.)
S Square & Rectangle Shape
C-Grade quartz substrates, plates, slides, wafers and windows are widely used in material processing. |
|
|
 |
| Substrate Material: |
UV fused quartz, UV grade(180-2100nm) |
| Outer Diameter: |
31.8,-0.2/+0.0mm |
| Thickness: |
9.5,+/-0.1mm |
| Surface Quality: |
Double side fine polished (40-20 scratch and dig, MIL Standard) |
| Flatness: |
Plano surface: <Lambda/10@ 632.8nm over 1-inch area on-jig tested |
| Front Surface: |
Concave; ROC: please contact us. |
| Edge Surface: |
With U-groove centered(width: 2.50mm) on edge surface (ground) for O-ring | |
| |
