| Name: | DIA158.0xT8.0mm UV Quartz Window(c/w Step D3.5mm) |
| P/N: | QUZS-C-R-1580-0800-STEP4.5 | | Keywords: | Dia158.0xT8.0mm,UVFS,DSP,40-20 S/D,Step-edge |
| Unit Price: |
S$750.00/pc
|
| Available: |
In stock
|
| Request: |
Add to Request List |
| Introduction: | QUZS UV Grade Quartz Substrate
C 40-20 Scratch and Dig (Double Side Typ.)
< Lambda/10 @ 632.8nm over 1-inch area on-jig tested
S Square & Rectangle Quartz Substrate
R Round Quartz Substrate
C-Grade Quartz substrates, Quartz plates, slides, wafers and Quartz windows are widely used in material processing. |
|
|
|
Substrate Material: |
UV Fused Silica |
|
Outer Diameter: |
DIA 158.0, -0/+0.5mm |
|
Thickness: |
8.0, +/-0.2mm total |
| Top Surface: |
DIA 148.0, -0.5/+0mm |
| Base Height: |

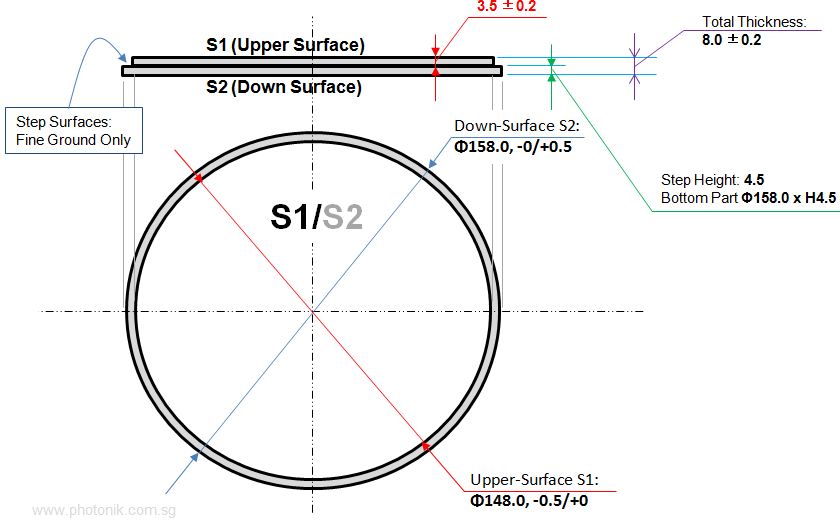

4.5 +/-0.1mm (per drawing as shown below) |
| Step Surfaces: |
Ground surface |
|
Surface Quality: |
Double side polished (40-20 scratch and dig, MIL Standard) |
|
Flatness: |
Top/bottom surfaces: < Lambda/4 @ 632.8nm over 1-inch area on-jig tested |
|
Parallelism: |
<3 arc minutes |
|
Edge Surface: |
Ground; typ 0.5mm x 45deg protection chamfer |
|
Coating: |
Top/bottom surfaces: UNCOATED |
| MOQ: |
NA. Email us(sales@optics.sg) for pricing on volume order process |
|
