Location: Main > Optical Substrates > Quartz Substrates Plates Wafers > QUZS-C-S-0700-0600-0500-1H4.5-R2

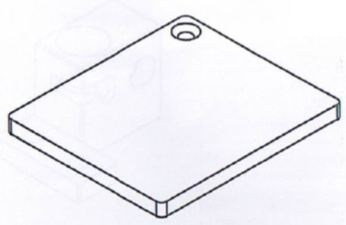

Name: 70.0x60.0xT5.0mmQuartz Window(4xR2) 1xhole D4.5mm
P/N: QUZS-C-S-0700-0600-0500-1H4.5-R2
Keywords:70.0x60.0xT5.0mm,UV Quartz,DSP;1xHole Dia4.5mm,4R2
Unit Price: S$125.00/pc
Available: In stock
Request: Add to Request List
Introduction:
QUZS  UV grade quartz substrate
C     40-20 scratch and dig (double side polished)
      < lambda/10 @ 632.8nm over 1-inch area on-jig tested
S     Square & Rectangle Quartz Substrate

R Round Quartz Substrate

C-Grade Quartz substrates, Quartz plates, slides, wafers and Quartz windows are widely used in material processing.

Substrate Material:  UV fused quartz(200-2500nm)
 Outer Dimension:  70.0x60.0, -0.2/+0.0mm
 Thickness:  5.0, +/-0.1mm
 Surface Quality:  Double side fine polished (40-20 scratch and dig, MIL Standard)
 Flatness:  < Lambda/10 @ 632.8nm over 1-inch area on-jig tested
 Parallelism: < 3 arc minutes
 Hole-thru Process:

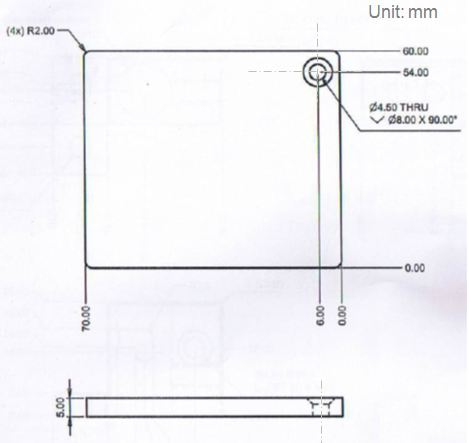

1 position(6.0x6.0mm border) with thru-hole of DIA4.5mm/90-deg taper angled(Dia8.0mm openning)

Positioning tolerance:+/-0.1mm

 Edge Surfaces:  Ground surfaces wiith protection chamfer 0.3mm x 45deg; 4xR2.0mm( 4 round corners with R2.0mm)
