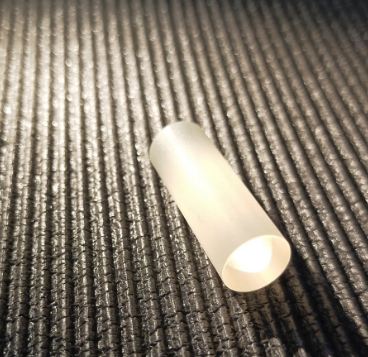

| Name: | DIA10.0xL50.0mm SF57 Glass Rod(AR@700-1300nm) |
| P/N: | SF57-R10-50-NIR | | Keywords: | Dia10.0xL50.0mm,SF57,Glass Rod,DAR@700-1300nm |
| Unit Price: |
S$460.00/pc
|
| Available: |
In stock
|
| Request: |
Add to Request List |
| Introduction: | Schott glass material, N-S57
nd=1.84666
Minimum Order Qty: 5pcs for new batch process |
|
|
 |
|
Substrate Material: |
Schott N-SF57 Glass (nd = 1.84666) |
|
Outer Diameter: |
Dia 10.0, +/-0.1mm |
|
Rod Length: |
Length 50.0, +/-0.3mm |
|
Surface Quality: |
2 end surfaces:
optically polished, 10-5 S/D, <lambda/10@ 633nm over surfaces; Coating: as specified below |
|
Parallelism: |
< 30 arc seconds (between 2 end surfaces) |
|
Coating: |
2 end surfaces: R <0.5% @ 700-1300nm, 0-deg AOI; R<0.3% max@ 800 +/-40nm and 1040 +/-40nm (0-deg AOI) |
|
Outer Cylindrical Surface: |
Ground only |
|
Bevel: |
0.15mm x 45deg | |
| |
