| Location: Main >
Optical Substrates > Schott Glass Slabs Substrates Rods > BF33-S-02790212-0110-1C3.8
|
|
|
| Name: | 27.9x21.2xT1.1mm Borofloat 33 Glass Window(C3.8mm) |
| P/N: | BF33-S-02790212-0110-1C3.8 | | Keywords: | 27.9x21.2xT1.1mm,BF 33,40-20 S/D,C3.8mmx45deg,MOQ5 |
| Unit Price: |
S$25.00/pc
|
| Available: |
In stock
|
| Request: |
Add to Request List |
| Introduction: | Schott BF33 -Borofloat 33 Glass Substrate Window |
|
|
 |
|
Substrate Material: |
Schott Borofloat 33 (BF33) Glass |
|
Outer Dimension: |
27.9x21.2, +/-0.1mm |
|
Thickness: |
1.1,+/-0.1mm |
|
Surface Quality: |
Double side fine polished(DSP);40-20 S/D |
|
Surface Flatness: |
<lambda/4 @ 633nm over 25mm(on-jig inspected) |
|
Parallelism: |
<1 arc minute |
|
Edge Surfaces: |
Ground only; Protection chamfer,0.1mmx45deg |
| Special Chamfer: |

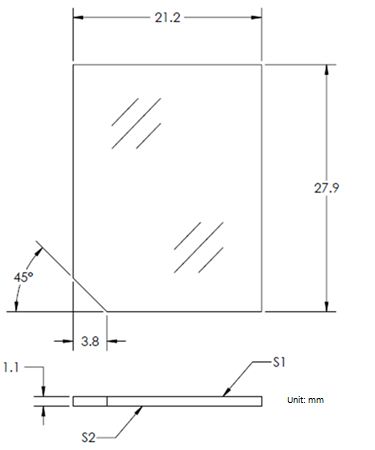

1-corner with 3.8mm x 45-deg chamfered, as drawing below |
|
MOQ: |
MOQ 5pcs(minimum order quantity). Email us sales@optics.sg for pricing with volume order. |  |
| |
