Location: Main > Optical Substrates > Schott Glass Slabs Substrates Rods > BF33-R-0440-0500-ID25.0-2C1.0

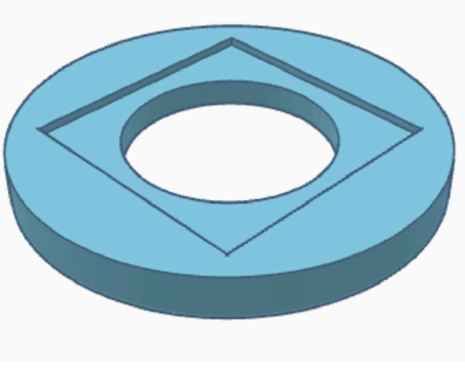

Name: DIA44.0xT5.0mm Borofloat33 Clear Glass Flange Ring
P/N: BF33-R-0440-0500-ID25.0-2C1.0
Keywords:DIA44.0x5.0mm,BF33,Flange;Full polished,MOQ20pcs
Unit Price: S$212.00/pc
Available: Call us
Request: Add to Request List
Introduction:
Schott BF33 -Borofloat 33 Glass Substrate Window

Substrate Material:
Schott Borofloat 33 (BF33) Glass
Outer Dimension:
Dia 44.0, -0.2/0mm
Thickness:
5.0,+/-0.1mm
Surface Quality:
Double side fine polished(DSP); 60-40 S/D(front S1 and back S2 surface)
Surface Flatness:
<lambda/4 @ 633nm over 25mm(on-jig inspected)
Parallelism:
<1 arc minute
Edge Surfaces:
Clear polished
Center Bore:
Dia 25.0 +/-0.1mm ; Internal wall surface clear polished
Recess Design:
Front surface S1:
31.0x31.0mm with depth of 1.0mm, tolerance +/-0.1mm;
Clear polished;
Surface PV within 5um; Corner R not more than 1.0mm;

Back surface S2:
Dia 38.0mm with depth of 1.0mm, tolerance +/-0.1mm
Clear polished;
Surface PV within 5um
MOQ:
MOQ 20pcs(minimum order quantity). Email us sales@optics.sg for pricing with volume order.
