Location: Main > Optical Lenses > Hex Shaped Lens > HEL-PCX-BK7-2.0-F100-ARVIS
Name: D2.0mm Hex-Shaped PCX Lens(F+100mm) DAR400-700nm
P/N: HEL-PCX-BK7-2.0-F100-ARVIS
Keywords:D2.0mm,BK7,PCX,EFL+100mm,AR/AR@400-700nm
Unit Price: S$175.00/pc
Available: In stock
Request: Add to Request List
Introduction:
Hex shaped glass lens;
Plano-convex design;
Both surfaces come with AR coated over 400-700nm;
Customized shapes available

 Substrate Material:
 BK7 optical glass, grade A annealed
 Wavelength Range:
 350~2000nm
 Designed Wavelength:
 633nm (index n=1.515082)
 Outer Diameter:

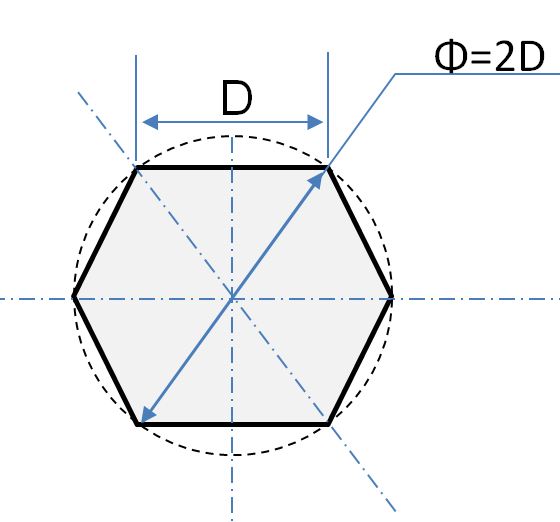

 Nominal outer diameter(=2D) = 4.0, -0.1/0mm (Ref: diagram as shown below)
 Hex-Shape Side-Length(D):
 D = 2.0 +/-0.1mm
 Effective Focal Length(EFL):
 +100mm  (+/-1% typical)
 Center Thickness(CT):
 2.2mm
 Edge Thickness(ET):
 1.8mm (ref)
 Radius of Curvature(ROC)
 +51.50 convex surface(spherical surface)
 Surface Quality:
 40/20 scratch and dig
 Surface Accuracy:  <lambda/10@ 633nm over full aperture (with special jigs controlled)
 Centration:
 < 3 arc minutes
 Clear Aperture:
 100% of hex surface
 Hex Edge Surfaces:
 Ground surfaces with PV<0.01mm
 Coating:
 Both surfaces with AR coating: R<0.5% @ 400-750nm, 0-deg AOI
 MOQ:
 MOQ 2pcs (minimum order quantity)
