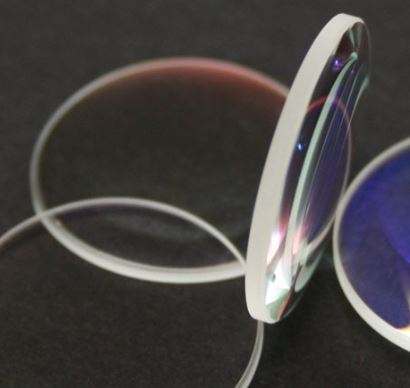

| Name: | DIA29.4mm UV-Blue Plano-Convex Lens EFL+50mm |
| P/N: | POL-PCX-294-50-UVB | | Keywords: | Dia29.4mm,FK5,EFL+50.7mm,DAR@350~450nm |
| Unit Price: |
S$350.00/pc
|
| Available: |
In stock
|
| Request: |
Add to Request List |
| Introduction: | BK7 Plano-Convex Lenses have a positive focal length and near-best-form shape for infnite and finite conjugate applications. Plano-convex lenses focus a collimated beam to the back focus and collimate light from a point source. |
|
|
 |
| Substrate Material: |
Schott FK5 |
| Wavelength Range: |
320~480nm UV-Blue band |
| Outer Diameter: |
29.4,-0.1/+0.0mm |
| Effective Focal Length: |
50.7mm (+/-0.5%) |
| Radius of S1: |
25.35mm |
| Radius of S2: |
plano/flat |
| Scratch/Dig: |
20/10 |
| Centration: |
<3 arc minutes |
| Clear Aperture: |
>90% |
| Surface Coating: |
Double side AR coated at 320~480nm, R<0.5% max,0-deg AOI | |
| |
