| Name: | DIA15mm HT532+808nm/HR1064nm Mirror(45deg/R-500mm) |
| P/N: | CIM-808B-1064-15-3-N0500 | | Keywords: | Dia15xT3mm,BK7,R-500mm,HT532+808nm/HR1064nm,45deg |
| Unit Price: |
S$490.00/pc
|
| Available: |
In stock
|
| Request: |
Add to Request List |
| Introduction: | These input laser cavity mirrors (input pump mirrors) allow 808nm laser light with 45-deg angle of incidence to go into the laser cavity and reflect 1064nm laser light in the laser cavity.
S2: Flat
AR @ both 532nm and 808nm (R<1% average), 45-deg AOI
S1: Concave (ROC=-500mm)
HR @ 1064nm (R>99.5%), HT @ 532nm and 808nm (T>98%), 45-deg AOI |
|
|
 |
|
Substrate Material: |
BK7 optical glass |
|
Mirror Design: |
Plano-concave |
|
Surface Flatness: |
<lambda /10 at 633nm over clear aperture |
|
Surface Quality: |
20-10 scratch and dig |
|
Outer Diameter: |
15.0,-0.1/+0mm |
|
Thickness: |
3.0,+/-0.1mm |
|
Wedge/Parallelism: |
<1 arc minute |
|
Chamfer: |
0.2mm at 45-deg typ |
|
Concentricity: |
< 0.05mm |
|
Coating Technology: |
Electron beam multilayer dielectric |
|
Clear Aperture: |
Exceeds central 90% of dimension |
|
Damage Threshold: |
1MW/cm2 CW, 5J/cm2 (10ns pulse) |
|
Surface Radius Type: |
S1: Concave surface; ROC = -500mm
S2: Flat (plano design) |
|
Coating (45-deg AOI): |

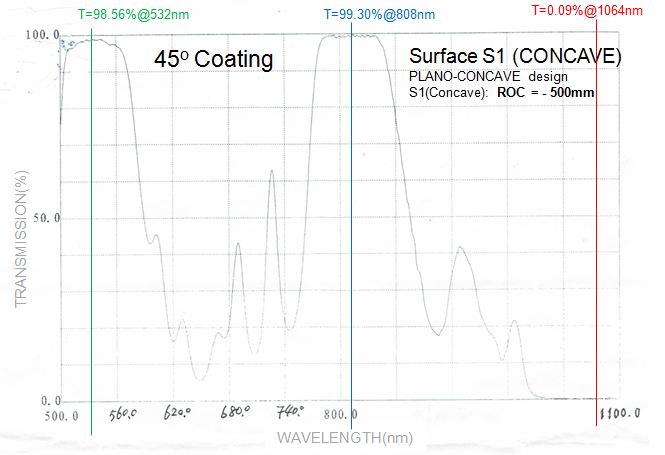

S1(concave): HR @ 1064nm (R>99.5%), HT @ 532nm & 808nm (T>98%), 45-deg

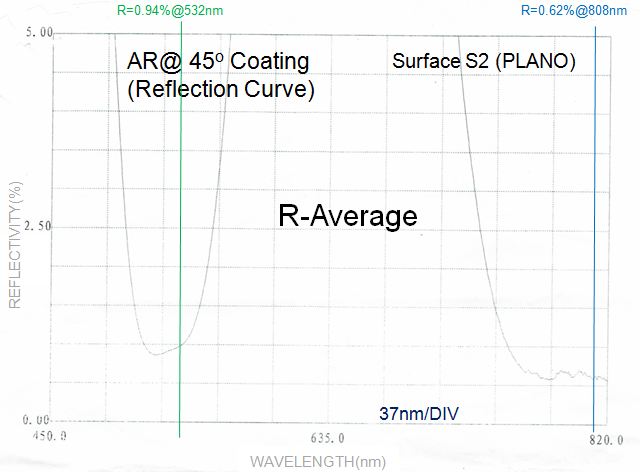

S2(plano): AR @ 532nm & 808nm (R<1% average), 45-deg |
|
| |
