Location: Main > Optical Mirrors > D Shaped Mirrors with Hole > DSM-02A-02540600-W30
Name: DIA1"x6.0mm 400-900nm D-Shaped Mirror(30deg)
P/N: DSM-02A-02540600-W30
Keywords:Dia25.4xT6.0mm,UVFS,HR@400-900nm,D-Shaped,MOQ10pcs
Unit Price: S$150.00/pc
Available: Call us
Request: Add to Request List
Introduction:
These D-shaped pickoff mirrors, which are available with a number of different coatings, are designed to enable the separation of closely spaced beams. D-shaped mirrors are ideal for picking off one of two closely spaced beams because the reflective coating extends to within 0.1 mm of the straight edge of the mirror. In addition, a wedge of the substrate is removed from behind the straight edge of the mirror in order to prevent the beam that was not picked off from clipping the pickoff mirror.

Substrate Material:
UV Fused Silica
Outer Diameter:
25.4,-0.2/+0.0mm(ROC 12.7mm)
Thickness:
6.0,+/-0.1mm
2-Surface Polish:  DSP, 20-10 S/D; <Lambda/10@633nm over D-shaped surface
 D-Shaped Dimension:

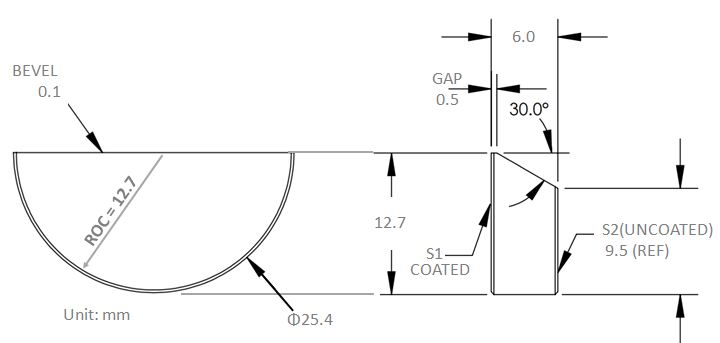

Semi-circle(as drawing below)
Wedged Surface:
30o wedged over straight edge(as drawing below) and fine ground  wedge surface
Front Surface(S1):
R>99.5%(ave) for S and P polarization
for angles of incidence from 0-deg to 45-deg
at 400-900nm typical (400-900nm minimum range)
Back Surface(S2):
Uncoated
Clear Apeture:
>90% of outer diameter
Laser Damage Threshold:
2kW/cm2 CW,100mJ/cm2 10ns pulse
Edge Surface: 0.35mm x 45o protection chamfer with round edges and <0.1mm over straight edge of D-shaped mirrors.
MOQ: MOQ 10pcs (minimum order quantity per order)
