Location: Main > Optical Mirrors > Dichroic Mirrors Filters > DCM-D-R-0254-0060

Name:	1"x6mm HR400-980/HT1030-1200nm Mirror(AR@1064nm)
P/N:	DCM-D-R-0254-0060
Keywords:	Dia25.4xT6.0mm,UVFS,HR400-980nm/HT1030-1200nm;cwAR
Unit Price:	S$390.00/pc
Available:	In stock
Request:	Add to Request List

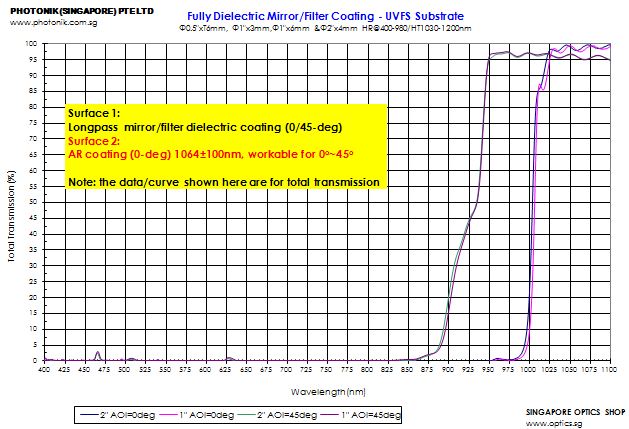

Introduction:	0-deg AOI coating design; HR @400-980nm,R>99.5% & HT @1030-1200nm,T>95% Slope/Transition band from 980-1030nm Back surface comes with AR @1064+/-100nm, to achieve total transmisson T>98% @ 1030-1200nm.

Substrate Material	Corning 7980 UVFS
Outer Diameter:	25.4,-0./+0.0mm
Configuration:	Plano-plano
Clear Aperture:	>90% of polished surface
Thickness:	6.0,+/-0.1mm
Surface Quality	40-20 scratch and dig;<Lambda/10 @633nm over clear aperture
Parallelism:	<1 arc minute
Coating on Front Surface-S1:	HR @ 400-980nm(R>99.5%), 0-deg AOI design HT @1030-1200nm,T>95%, 0-deg AOI design
Coating on Back Surface-S2:	AR @ 1060+/-100nm (R<0.25%), 0-deg AOI design Note: total transmission T>98% @ 1064+/-30nm, 0-deg AOI
Chamfer:	0.25mm x 45deg protection
