Location: Main > Optical Prisms > Right Angle Prisms > RAP-AU-B-06000600-0600C3C1
Name: 6x6xH6mm Gold-Coated Prism Mirror(3mm Chamfer)
P/N: RAP-AU-B-06000600-0600C3C1
Keywords:6.0x6.0xH6.0mm,Bare Gold Coated,c/w3x3x3mm Chamfer
Unit Price: S$150.00/pc
Available: In stock
Request: Add to Request List
Introduction:
The hypotenus surface of the right angle prisms are gold coated, the thickness of gold layer is 100nm.

Material: Fine Anneal BK7 Optical Glass
Outer Dimensions:

A=B=H=6.0mm
C=8.5mm

Back 1-corner chamfered

3.0x3.0x3.0mm (tolerence +/-0.2mm)
Dimension Tolarence: +/-0.1mm
Surface Quality: Clear/polished on two right-angle surfaces and hypotenus surface
40/20 scratch and dig
Flatness: < Lambda/8 @ 633nm (>80% of clear aperture)
Angle Tolerance: +/-3 arc. min.
Buffer Layer: Chrome(Cr) (typ 70-80nm)
Coating Layer: Hypotenus surface with bare gold coated; thickness of gold layer (typ >100nm)
Protection Coating: None(bare gold surface for high reflection and broadband applications)

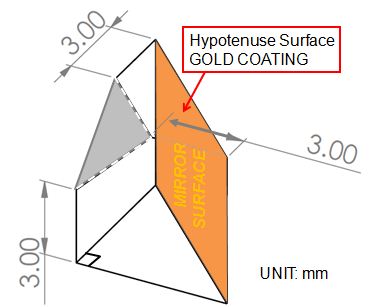

Chamfer Process:

 Special chamfer processed -3.0x3.0x3.0mm cut on back corner

MOQ: MOQ10pcs(minimum order quantity)
