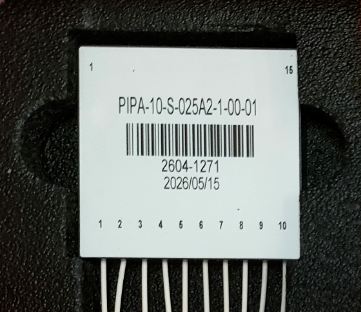

| Name: | 10-Ch InGaAs Photodiode Array(PIPA) SMF-28(SC/UPC) |
| P/N: | PIPA-10-S-025A2-1-00-02 | | Keywords: | 10-Ch,InGaAs PD,2GHz,SMF-28/900um/L1m,SC/UPC |
| Unit Price: |
S$1,950.00/pc
|
| Available: |
In stock
|
| Request: |
Add to Request List |
| Introduction: | Pigtail Integrated Photodiode Array(PIPA) is a compact multi-channel optical power-monitoring device. It increases module design flexibility and efficiency by significantly reducing the number of assembly components and facilitating fiber management.
PIPA features excellent optical and electrical properties such as broad wavelength range, high responsibility. It can be used for signal/pump power monitoring in EDFA or Raman Amplifiers and other electrical cards. The PIPA is integrated by PDs.
It offers high reliability and qualifies Telcordia GR-468-CORE.
Customized PIPA modules available upon request. |
|
|
 |
|
Photodiode Type: |
InGaAs PD |
|
Operation Wavelength Range |
1250 - 1650nm typ; InGaAs PD works at 800-1700nm band. |
|
Input Optical Power: |
3dBm max |
|
Return Loss |
50dB typ |
|
PD Responsibility |
>0.8 A/W; 1.2 A/W max |
|
PIN Dark Current |
<0.5nA(25 oC, -5V); 5nA(70 oC, -5V); |
|
Internal Chip Capacitance |
<8pF (25 oC) |
|
Cut-Off Frequency |
1GHz, typ; 2GHz max |
|
Forward Current |
5mA max |
|
Reverse Voltage |
10V max |
|
|
0 - 70 oC |
|
Storage Temperature |
- 40 ~ 85 oC |
|
Lead Soldering Temperature |
260 oC(<10s) |
|
Pigtail Type: |
G657A2, 250um fiber, 900um loose tube(white typ) with 1-m long |
|
Connectors: |
SC/UPC (all 10 ports) |
|
Array Housing: |
40.0x39.0xT6.0mm metal housing |
|
Mounting design: |
15-pin PCB mountable(drawing as below) |

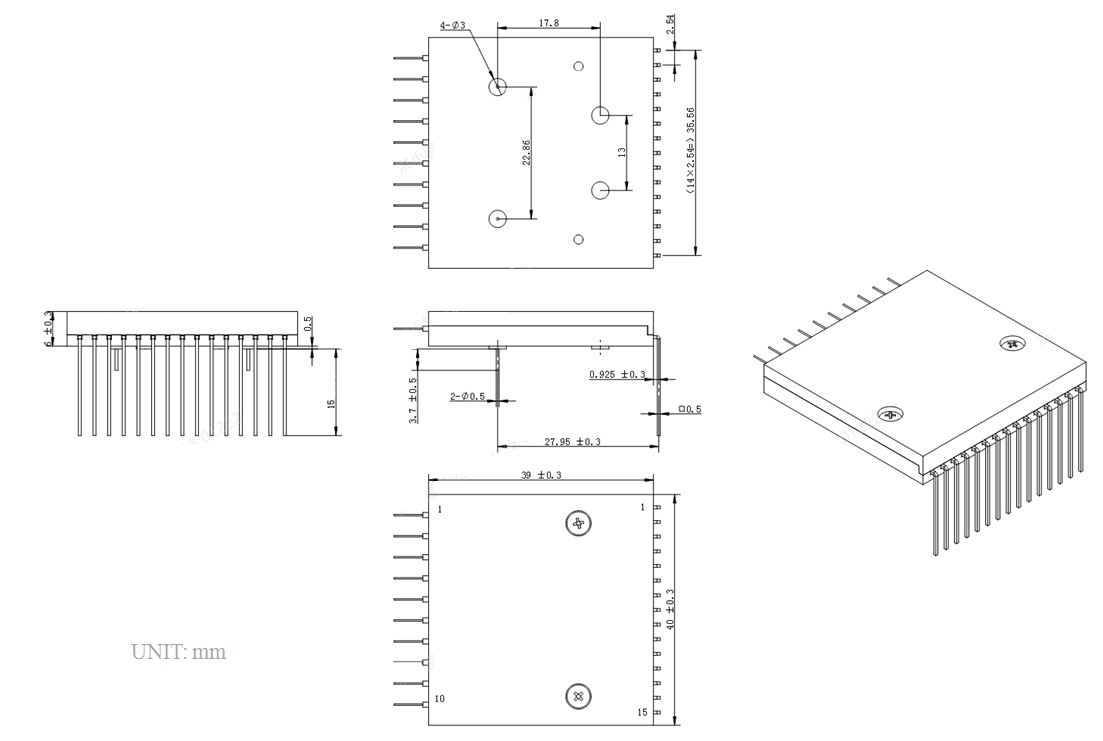

PIPA-10 pin Definitions:
|
Pin |
10-port version |
|
1 |
Cathode(common 1-2) |
|
2 |
Anode A1 |
|
3 |
Anode A2 |
|
4 |
Cathode(common 3-4) |
|
5 |
Anode A3 |
|
6 |
Anode A4 |
|
7 |
Anode A5 |
|
8 |
Cathode(common 5-6) |
|
9 |
Anode A6 |
|
10 |
Anode A7 |
|
11 |
Cathode(common 7-8) |
|
12 |
Anode A8 |
|
13 |
Anode A9 |
|
14 |
Cathode(common 9-10) |
|
15 |
Anode A10 |
