Location: Main > Optomechanics > Translation Rotation Pitch Yaw Stages > PTS3-25M
Name: 25mm XYZ Translation Stage(Vertical/Metric)65x65mm
P/N: PTS3-25M
Keywords:XYZ stage,Travel 25mm,Micrometer,Vertical 65x65mm
Unit Price: S$1,250.00/set
Available: Call us
Request: Add to Request List
Introduction:
Metric design;
Travel Range: 25mm
Resolution: 1um
Inner or outer mounting, modular design
Come with universal base, 100% compatible to metric optical table
More large pictures

 Material:  Aluminium alloy & stainless steel
 Contral axis:  3-axis(XY-axis fixed, Z-axis stage and L-shape plate modular)
 Travel Range:  25mm
 Guidance Mechanism:  Hardened Steel, Cross-roller design
 Platform Dimension:  65.0 x 65.0mm; M6 tap holes(25mm spacing)
 Actuator:  Micrometer Head (with center control), 25.0mm travel distance
 Manual Resolution:  1um
 Reading Accuracy:  10um
 Linearity:  2um
 Load Capacity:  10KG; special Z-axis drive designed with heavy duty
 Lock design:  3-axis each with side locker to fix the position

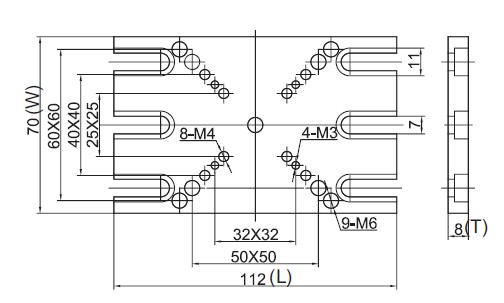

 Base Plate:

 This stage comes with one universal base plate, compatible to metric 25mm optical table;
