Location: Main > Optical Prisms > NonStandard Prism Mirrors

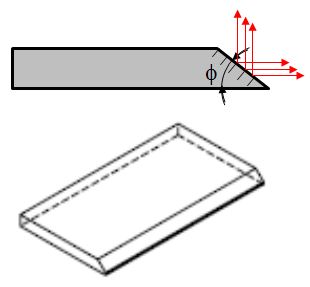

Prism Quad Mirrors
P/N:PQM Series
Introduction:Optical prism design
Coated on wedged surfaces
Protected Aluminum or Silver coating available
P/N Keywords Unit Price Available Generate Quotation
PQM-PAG-00800100-020-450 8.0x10.0xT2.0m,BK7,P-Ag coating,45-deg wedge S$105.00/pc In stock Add to Request List
PQM-PEAL-01500300-070-440 15.0x30.0xT7.0mm,BK7,E-Al coating,44-deg wedge S$169.00/pc In stock Add to Request List
PQM-PEAL-02000370-023-440 20.0x37.0xT2.3m,BK7,E-Al coating,44-deg wedge S$155.00/pc In stock Add to Request List
PQM-PEAL-02500150-023-430 25.0x15.0xT2.3m,BK7,E-Al coating,43-deg wedge S$150.00/pc In stock Add to Request List
PQM-PEAL-02500250-023-440 25.0x25.0xT2.3m,BK7,E-Al coating,44-deg wedge S$180.00/pc In stock Add to Request List

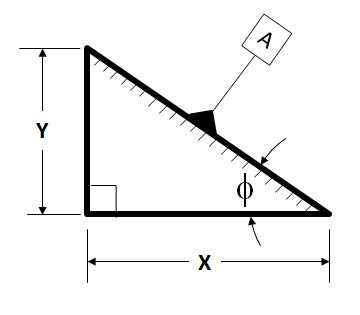

Side Center Prism Mirrors
P/N:SCPM Series
Introduction:Side and center prism mirrors
Right-angle prism design;
Coating on hypeteous surface only (protected aluminum or silver coated)
For imaging sytem integration
P/N Keywords Unit Price Available Generate Quotation
SCPM-PAG-01000150-034-190 10.0x15.0xT3.4m,BK7,P-Ag coating,19.0 deg wedge S$60.00/pc In stock Add to Request List
SCPM-PAG-01180150-050-225 11.8x15.0xT5.0m,BK7,P-Ag coating,22.5 deg wedge S$55.00/pc In stock Add to Request List

[First] [Previous] [Next] [Last]
Goto page 		This is Page 1 of total 1pages
Total 2 types, 10 types/page
