| Name: | 2"xT4mm HR400-980/HT1030-1200nm Mirror(AR@1064nm) |
| P/N: | DCM-D-R-0508-0040 | | Keywords: | Dia50.8xT4.0mm,UVFS,HR400-980nm/HT1030-1200nm,cwAR |
| Unit Price: |
S$520.00/pc
|
| Available: |
In stock
|
| Request: |
Add to Request List |

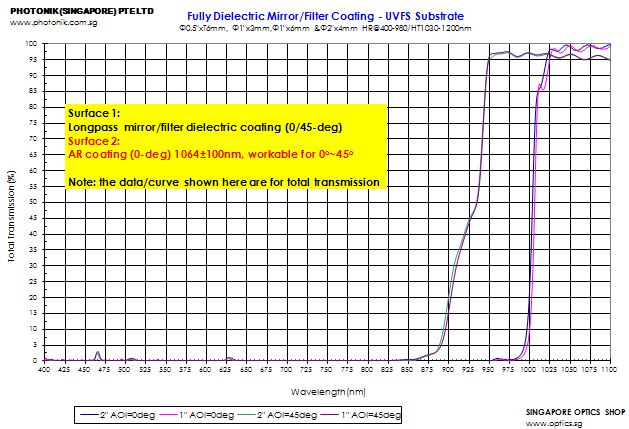

| Introduction: | 0-deg AOI coating design;
HR @400-980nm,R>99.5% & HT @1030-1200nm,T>95%
Slope/Transition band from 980-1030nm
Back surface comes with AR @1064+/-100nm, to achieve total transmisson T>98% @ 1030-1200nm. |
|
|
 |
|
Substrate Material |
Corning 7980 UVFS |
|
Outer Diameter: |
50.8,-0./+0.0mm |
|
Configuration: |
Plano-plano |
|
Clear Aperture: |
>90% of polished surface |
|
Thickness: |
4.0,+/-0.1mm |
|
Surface Quality |
40-20 scratch and dig;<Lambda/10 @633nm over clear aperture |
|
Parallelism: |
<1 arc minute |
|
Coating on Front Surface-S1: |
HR @ 400-980nm(R>99.5%), 0-deg AOI design
HT @1030-1200nm,T>95%, 0-deg AOI design |
|
Coating on Back Surface-S2: |
AR @ 1060+/-100nm (R<0.25%), 0-deg AOI design
Note: total transmission T>98% @ 1064+/-30nm, 0-deg AOI |
|
Chamfer: |
0.25mm x 45deg protection |  |
| |
