Location: Main > Optical Substrates > Optical Flats Substrates with Hole

Glass Flats with Hole
P/N:OFH Series

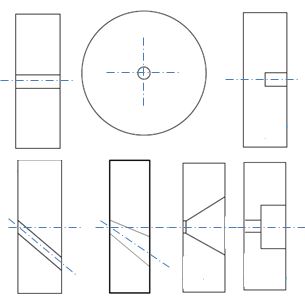

Introduction:Optical glass substrates(typ N-BK7, UVFS glass);
Plano-plano surfaces optical polished and uncoated;
Center hole drilled/through or blind type
0-deg, 45-deg or other angles slanted;
Vertical or slanted through, straight or tapered holes with customized axis alighned to normal direction;
P/N Keywords Unit Price Available Generate Quotation
OFH-01-R0254-0600-0-1.5T Dia25.4xT6mm,BK7,1.5mm hole thru/0-deg centered S$95.00/pc In stock Add to Request List
OFH-01-R0254-0600-0-2.0T Dia25.4xT6mm,BK7,2.0mm hole thru/0-deg centered S$95.00/pc In stock Add to Request List
OFH-01-R0254-0600-0-2.5T Dia25.4xT6mm,BK7,2.5mm hole thru/0-deg centered S$95.00/pc In stock Add to Request List
OFH-01-R0254-0600-0-3.0T Dia25.4xT6mm,BK7,3.0mm hole thru/0-deg centered S$95.00/pc In stock Add to Request List
OFH-01-R0254-0600-0-3.5T Dia25.4xT6mm,BK7,3.5mm hole thru/0-deg centered S$95.00/pc In stock Add to Request List
OFH-01-R0254-0600-0-4.0T Dia25.4xT6mm,BK7,4.0mm hole thru/0-deg centered S$95.00/pc In stock Add to Request List
OFH-01-R0254-0600-0-4.5T Dia25.4xT6mm,BK7,4.5mm hole thru/0-deg centered S$95.00/pc In stock Add to Request List
OFH-01-R0254-0600-0-5.0T Dia25.4xT6mm,BK7,5.0mm hole thru/0-deg centered S$95.00/pc In stock Add to Request List
OFH-01-R0254-0600-0-5.5T Dia25.4xT6mm,BK7,5.5mm hole thru/0-deg centered S$95.00/pc In stock Add to Request List
OFH-01-R0254-0600-0-6.0T Dia25.4xT6mm,BK7,6.0mm hole thru/0-deg centered S$95.00/pc In stock Add to Request List

[First] [Previous] [Next] [Last]
Goto page 		This is Page 1 of total 1pages
Total 1 types, 10 types/page
