Axes of Travel |
XYZ (3 axes); Top surface mounting with miniaturized design
XY stage: modular design; can be dis-assemblied to work as single-axis stage. |
|
Material |
Aluminium Alloy, Brass & Stainless Steel |
|
Travel Range |
6mm minimum (for each axis) |
|
Guidance Mechanism |
Hardened-steel V-grooved |
|
Top-Platform Dimension |
25x25mm |
|
Height: |
12mm for X or Y stages; 21mm for Z stage;
Total height: 45mm (min) ~51mm (max)(no base plate included) |
|
Mounting |
M2 tap holes (8 positions, 10mm spacing) and M4 tap holes centered (1 position) |
|
Actuator |
Lower stage for Z-axis control with mini micrometer head (travel 6mm center control); Upper XY stage with fine lead screw(80-TPI, travel >6mm) |
|
Manual-Control Resolution |
1um |
|
Linearity |
2um |
|
Side Locker |
Yes. All 3-axe with side locker |
|

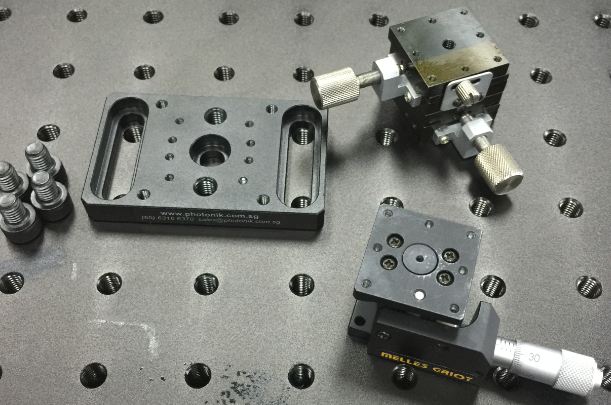

Base Plate |
Note: this plate is not included in price. Optional: S$55/pc, subject to stock availability.
|
|
Loading Capacity |
0.5Kg max |
| Note for Mounting |

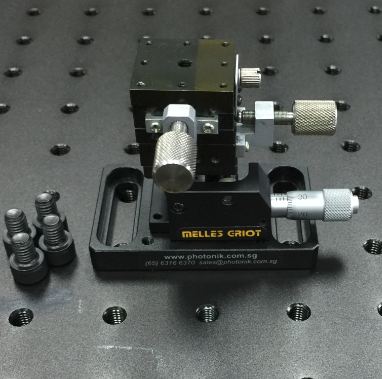

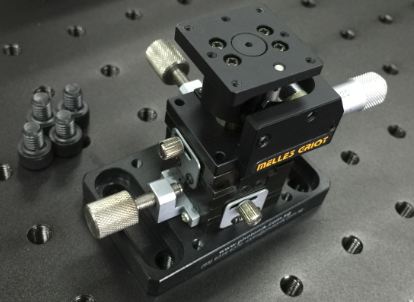

Z-stage can be either stacked on upper side or down side of XY stage. See below. |
